LinBot Pick and Place Robots

AM01

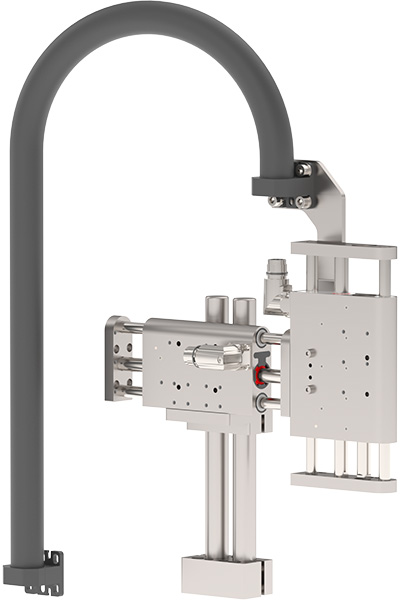

AM01-XY Pick and Place
AM01-Range and Payload
  • Qty 2 DM01 (X and Z axes)

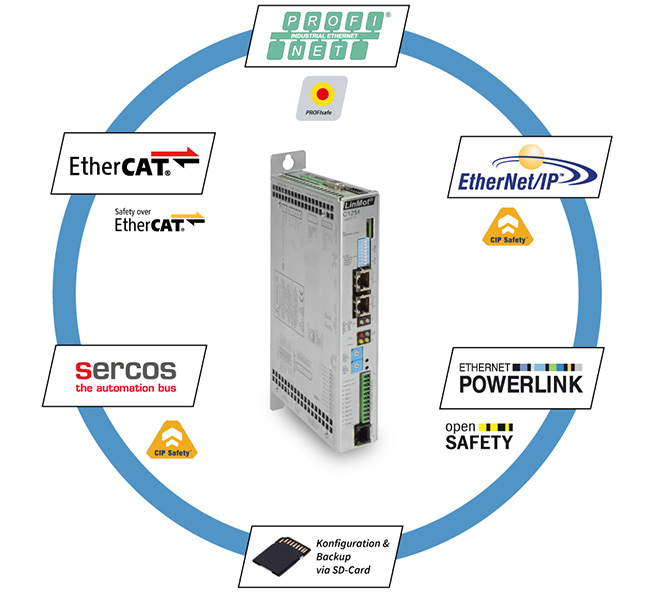

  • Qty 2 C1250-MI Servo Drives
  • Qty 2 4m Cables
  • Qty 1 S02-72/1000 Power Supply
  • Pillar system + other accessories

AM02

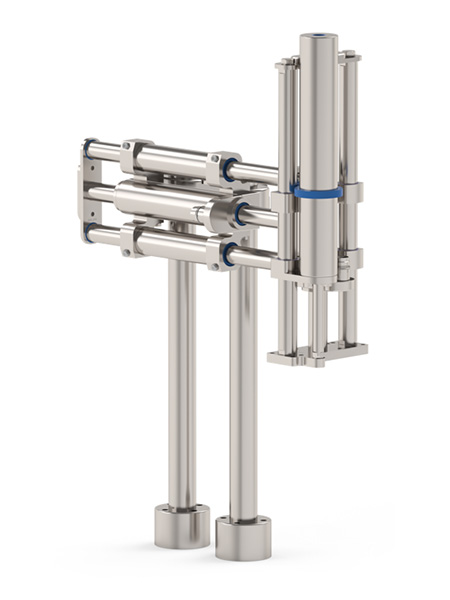

AM02-XZ Pick and Place-Stainless Steel
AM02-XZ Pick and Place-Range and Payload- Stainless Steel
  • 2 SM01 (X and Z axes),
  • 2 C1250-MI Drives,
  • 2 4m Cables,
  • 1 S02-72/1000 Power Supply,
  • Pillar system + other accessories

AM03

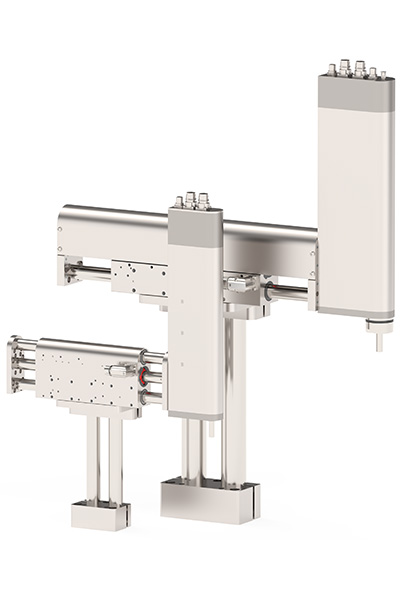

AM03-XZ Pick and Place with MagSpring
AM03-XZ Pick and Place with MagSpring Payload and Range
  • 1 EM01 or FM01(X axis))
  • 1 DM01 (Z axis)
  • 2 C1250-MI Servo Drives,
  • 2 4m Cables,
  • 1 S02-72/1000 Power Supply,
  • Pillar system + other accessories

AM04

AM04-XZ Stainless Steel-Pick and Place
AM04-XZ Stainless Steel-Pick and Place- Range and Motion
  • 1 SM02 (X axis) and 1 SM01 (Z axis)
  • 2 C1250-MI Drives,
  • 2 4m Cables,
  • 1 S02-72/1000 Power Supply,
  • Accessories

AM05

AM05-XZ Pick and Place LinBot
AM05-XZ Payload and Range
  • 2 FM01 (X axes) and 1 EM01 (Z axis)
  • 3 C1250-MI Servo Drives,
  • 3 4m Cables,
  • 1 S02-72/1000 Power Supply,
  • Accessories

AM06

X'-X-Z - Gantry
AM06-XZ Range and Payload
  • 3 SM02 (X axes and Z axis)
  • 3 C1250-MI Drives,
  • 3 4m Cables,
  • 1 S02-72/1000 Power Supply,
  • Accessories

AM07

AM07-XZ Pick and Place -PR02 Rotary
AM07-XZ Range and Payload
  • 1 DM01 (X axes) and 1 PR02 (Z axis)
  • 3 C1250-MI Drive
  • 3 C1250-MI Drive
  • 3 4m Cables,
  • 1 S02-72/1000 Power Supply,
  • Accessories

AM09

AM09 - LinBot XZ Pick and Place
AM09-XZ Range and Payload
  • 1 EM01 or FM01 (X axes) and 1 PR02 (Z axis)
  • 3C1250-MI Drives,
  • 3 4m Cables,
  • 1 S02-72/1000 Power Supply,
  • Accessories

AM11

AM11 -XX'YZ Pick and Place - X-Y-P402 (Z-axis)
AM11-XX'YZ Range and Payload
  • 3 EM01 or FM01 (X and Y axes) and and 1 PR02 (Z axis)
  • 5 C1250-MI Drives,
  • 5 4m Cables,
  • 1 S02-72/1000 Power Supply,
  • Accessories

AM13

AM13-XX'YZ Gantry
AM13-XX'YZ Range and Payload
  • 3 EM01 or FM01 (X and Y axes)
  • 1 DM01 (Z axis)
  • 4 C1250-MI Drives,
  • 4 4m Cables
  • 1 S02-72/1000 Power Supply,
  • Accessories

AM14

AM14-XX'YZ Pick and Place Gantry
AM14-XX'YZ Range and Payload
  • 3 SM02 (X and Y axes) and 1 SM01 (Z axis)
  • 1 DM01 (Z axis)
  • 4 C1250-MI Servo Drives,
  • 4 4m Cables,
  • 1 S02-72/1000 Power Supply,
  • Accessories
